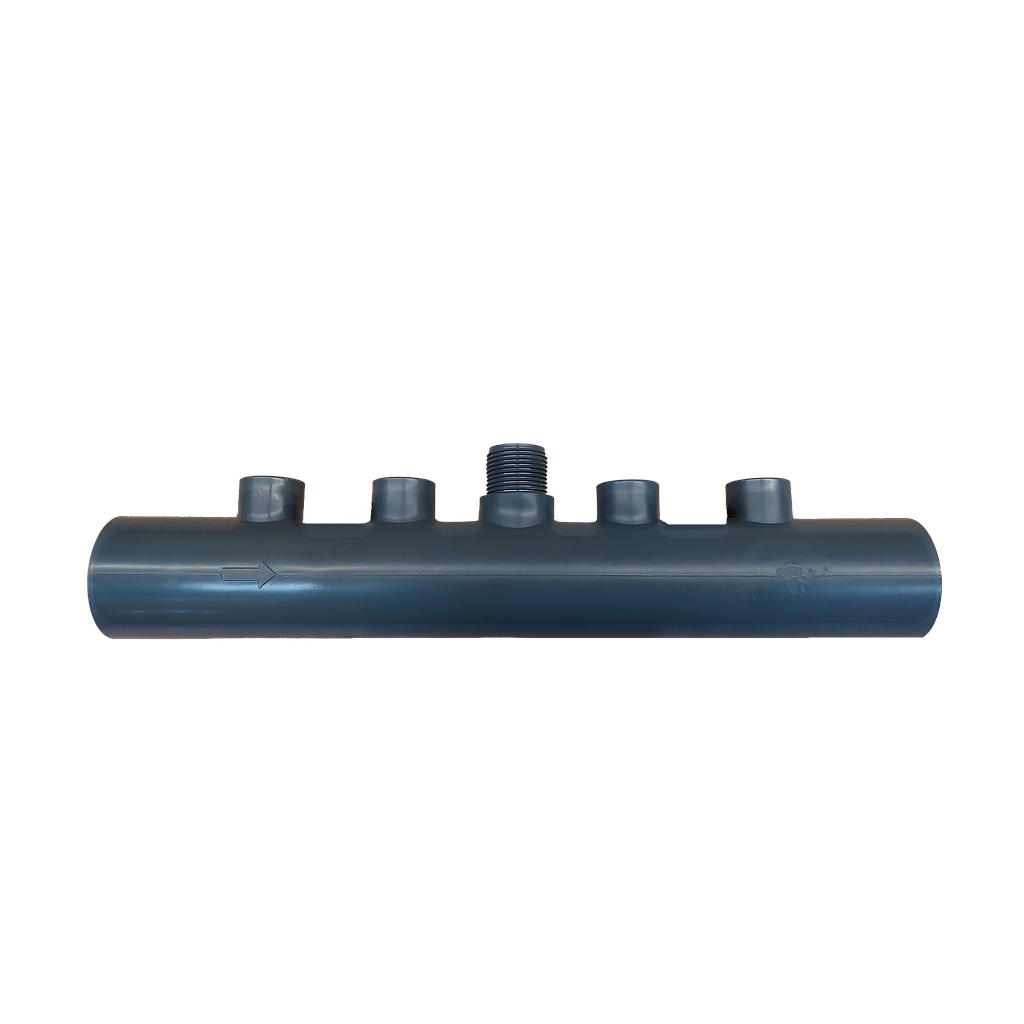

Measure and injection tube with 4 holes (1/2 Inch) + connection for flow switch
This measuring and injection tube with diameter 50mm and length 32cm is ideal for use in water treatment:
- When using liquid chlorine and pH,you have two connections for pH and Redox probe, 1 connection for flow switch (3/4 inch) and two connection for the injection nipples.
- With salt electrolysis in combination with liquid pH-, you have two connections for pH and Redox probe, 1 connection for flow switch (3/4 inch) one connection for the injection nipple and a connection for the grounding.
Warning: When using this injection tube, you will need a system where the addition of liquid acid and liquid chlorine cannot be done at the same time. For salt electrolysis, it should also be so that electrolysis and acid addition do not work at the same time.
The holes in the tube can be closed with a 3/4 inch cap for the outer wire flow switch connection, or with the combination probe gland + fake probe for the 1/2 inch inner wire probe / injection holes
The PVC pipe has a diameter of 50mm, and can be glued. Connection via 50mm rubber sleeves or bend is also possible. The tube is 32cm long
In the box : measuring and injection tube without accessories.
